GSTOP®: SMART BRAKE LOAD SENSING

Safety Device for Cars, Bikes and Vans

Reduce Risk of High Speed Rear Collisions, associated with
Motorways, Highways, Dual Carriageways.

WHAT IS GSTOP®

Gspot Unit

GSTOP® is a Smart Brake Safety Device for Cars, MotorBikes and Vans.
GSTOP® is a new and innovative product to the market, that activates under harsh braking conditions.
GSTOP® is undetectable, when stationary.
GSTOP® adds style and safety to your vehicle.
GSTOP®, in its default configuration*, is EU/UK Road Legal. As detailed in ‘European Regulations’ E/ECE/324 E/ECE/TRANS/505.
GSTOP® is a device that is available for every driver, no matter the age or type of vehicle – keeping everybody safe on the road.
GSTOP® is the smart safety device with smart brake load sensing.
Emergency Brake Light Display (EBLD) System.

GSTOP® is a vehicle brake light device that is activated when heavy braking is applied, to warn the
vehicles behind of an impending urgent need to stop, preventing rear end collisions.

PRODUCT REVIEW

Check out our Gstop review from the guys at Turbo Autos

GSTOP® PRO

GSTOP® is inactive when vehicle is stationary
Activation is triggered automatically by heavy braking
Deactivated automatically when braking force logic is Removed
Dual Stage Inertia Activation

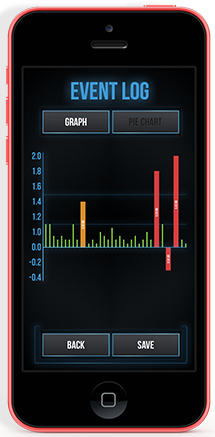

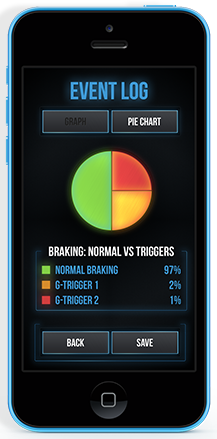

Event History Log Enable/Disable function (Default - On)
Super-Capacitor enabled recording of data log after power down

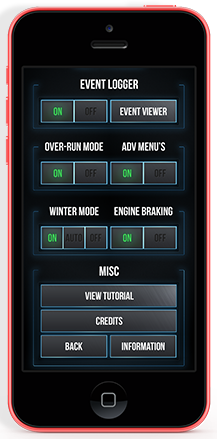

User Configurable Options by GSTOP® Companion APP
Does not interfere with vehicle bulb condition monitor
Does not interfere with normal braking conditions
Failsafe Design - in case of ‘GSTOP®’ failure
Product Encasement: Flame Retardant APS Plastic.
Moisture Proofing: Protective Lacquer Treated Circuit Board.
FailSafe: Interrupt relay configured ‘Normally Closed’ (NC).
Dimensions: (L)46mm (W)27mm (D)6mm-10mm.
Connector: 3 terminal snap fit connector.
Input Voltage: 6v~30vdc (or 6~30vac).
Power Consumption: < 200mW.
Relay Power Handling: Max 2 Amp.
(@6v Max = 12W).
(@12v Max = 24W).
(@24v Max = 48W)

GSTOP® Pro Manual

Dual Stage
G-Limit

Independent
Duration Timer’s

Selectable
Pulse Frequency

Winter ICE/Snow
Mode

Advanced ‘Duty
Cycle Adjustment’

User Selectable
‘Error Correction’

Active Axis
Selection

Over-Run
Mode

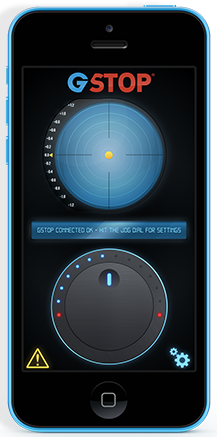

Mobile App

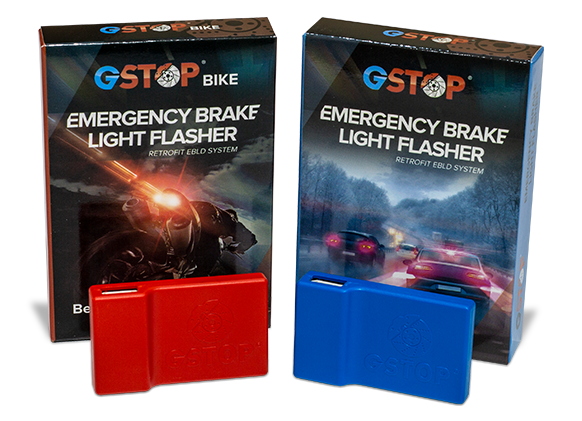

Gstop Unit

GSTOP® & GSTOP® Bike

GSTOP® is shipped as a ‘Factory Preprogrammed’ unit, and does not support the function of GSTOP® wireless configuration APP

GSTOP® factory pre-set configuration:

2x G-Force Triggers preset at 0.6G and 0.8G
G-Trigger Timers preset at 2.0 and 3.0 seconds
Pulse Frequency preset at 2Hz / 3Hz

GSTOP® Manual

UK/EU Road Legal: E/ECE/324 E/ECE/TRANS/505(in factory configuration)

CE Approved
FCC Exempt CFR47:15.103(a)

Directive WEEE (2002/96/EC) The product is in compliance with the directive WEEE.
